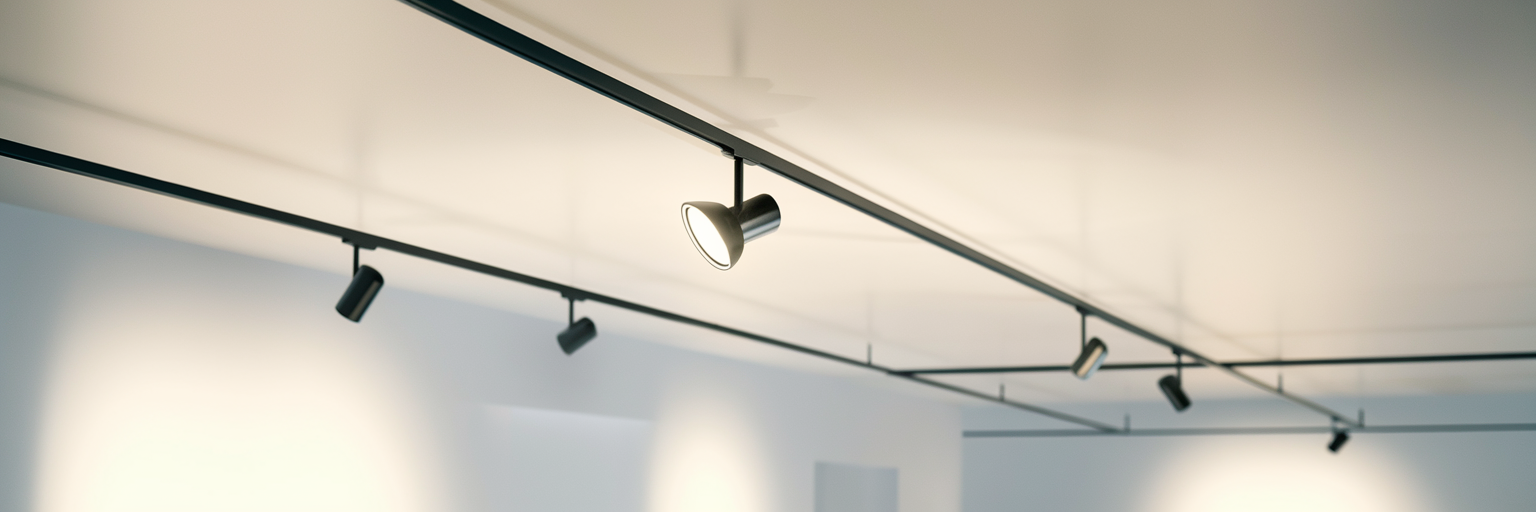

3-phase track lighting is the go-to solution for flexible, high-performance lighting. It lets you switch or dim multiple groups of spots independently on a single track. Below, we explain what 3-phase track is, what you need, and how to connect it correctly step by step.

Tools you’ll need

Before you start, gather your tools. You may not need everything for every setup, but having them ready makes the job easier.

- 3-phase track + end cap and end feed
- 3-phase track spots
- Screwdrivers
- 5-core installation cable (e.g., YMVK or H05VV-F)
- Junction box / ceiling (central) box
- Earth/ground connection available (required)
- Voltage tester
- Optional: connector blocks or WAGO-style lever connectors, wall plugs and screws

Step-by-step installation guide

1. Mount the track to the ceiling

Secure the track firmly to the ceiling using the supplied clips or suitable plugs/screws. Ensure the track is straight and level.

2. Prepare the 5-core supply cable

Strip the end of the cable. You’ll use five conductors: Brown (L1), Black (L2), Grey (L3), Blue (N), and Green/Yellow (earth).

3. Connect to the track end feed

Connect the three phase conductors to L1, L2, and L3. Connect Blue to the N terminal and Green/Yellow to earth. Follow the markings inside the end feed; they are usually clearly labelled.

4. Connect to the mains supply

If you want to control groups independently, wire the phase conductors to separate switches (or relays). Use proper connectors for safe, reliable connections and house them neatly in the junction box.

5. Click the spots into the track and choose the phase

Insert each track spot and use its selector switch to choose the phase it belongs to. Example setup:
L1 = task lighting, L2 = ambient lighting, L3 = accent lighting.

6. Restore power and test

Turn the power back on and test each phase group individually to confirm everything works as intended.

What is 3-phase track lighting?

3-phase track lighting integrates three live conductors (L1, L2, L3) into a single rail. Each spot or fixture can be assigned to a specific phase, allowing separate switching or dimming on the same track. Benefit: create different moods or control zones independently using a single mains connection.

Safety note

Important: Connecting 3-phase track ideally requires basic electrical knowledge. If in doubt, hire a qualified electrician.

Why choose 3-phase?

With your system now connected, you have a professional-grade track setup that’s ideal for commercial spaces and equally stylish and functional in modern interiors. It’s also highly flexible: spots can be repositioned or replaced with ease.
